GENERAL DATA:

Call sign/ IMO Number   : FALCON 10

Classification Agency     : Vietnam Register

Classification                   : *VRH, (*) VRM

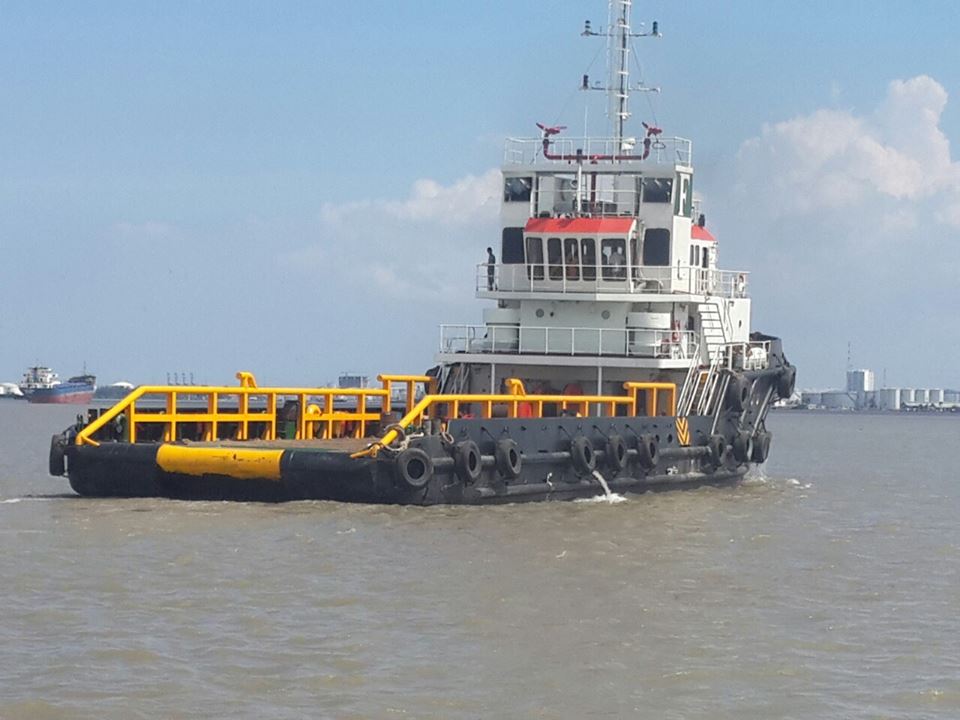

Type of ship                    : Multi-purpose tugboat

Building (Year/ Place)     : 2014/ Vietnam

Flag                                 : Vietnam

PRINCIPAL PARTICULAR

Length over all                 : 44.60 m

Breadth moulded             : 12.30 m

Depth moulded                : 4.70 m

Draught (max)                 : 3.90 m

PERFORMANCE

Economic speed             : 10 Knots

Type of Fuel                    : DO

Endurance                       : 40 days

CAPACITIES

Deck area                       : 250m²

Deck strength                  : 10T/ m²

Fuel oil                             : 500MT

Fresh water                     : 300MT

FO transfer                      : 1 x 100m3/hr @ 50m head

FW transfer                     : 1 x 120m3/hr @ 30m head

MACHINERY

Main engine                     : 2 x 2000 HP

Generator                        : 1 x 450KW+ 2x150KW

Propellers                        : 2 x Propeller

Bow thruster                    : 535 HP

Steering System             : Electro Hydraulic

c/w Joystick @ forward and aft consoles

DECK MACHINERY:

Windlass                          : 60MT (500m x 52mm)

Bollard pull                       : 50 MT

Stern Roller                     : 200 SWL, OD760mm, L4m

Anchor                             : 2 x 600kg



RADIO & NAVIGATOR EQUIPMENT

Sat-phone                        : Inm-C JRC-JUE-75C

Radar Arpa 9GHz           : FURUNO 1832

Echo Sounder                 : FCV-620

Satellite compass            : FURRUNO GP-32

Magnetic compass   : DAIKO KEIKI JAPAN T-150B

Navtex                             : SAMYUNG SNX-300

Fixed VHF/DSC*            : ICOM IC-M304 – 25W

MF/HF/DSC/NBDP*       : ICOM IC M-710-150W

Satellite EPIRB               :  SAMSUNG SEP-406

Other navigation equipment: GPS navigator GP-32, 2 VHF walkie Talkie, P.A system, CB Radio, Sart fitted, Daylight signling lamp…

LIFE SAVING : comply with SOLAS requirement

Life raft                            : 3 x 20

Life jackets                      : 50

Life buoys                        : 20

FIRE FIGHTING

Fire fighting (450HP)       :  1 x pumps 400M3/h

CO2 Smothering             : CO2 Extinguishing system

Fire Detection

ACCOMMODATION

Full air-conditioned          : 40 men

Complement                   : 10 men

Pax                                  : 30 men

Frozen store                    : 2 units

MISC

Dispersant tank

All around fendering
